►Resolution : 320*960

►View Direction:IPS

►Interface:RGB

►Outline Dimension:41.57 (H)*118.8 (V)*2.5(T)mm



Description



Model No.:H46I1201
Screen Diagonal4.58  inch
LCM Dimension(mm)41.57 (H)*118.8 (V)*2.5(D)
Active area (W*H):mm36.77 (H)* 110.30 (V)
Resolution320x960
Driver ICST7701S
Viewing DirectionIPS
Interface TypeMCU/SPI/SPI+RGB
Display ModeTFT
Backlight TypeWHITE LED
Operating temperature  -20ºC~+70ºC

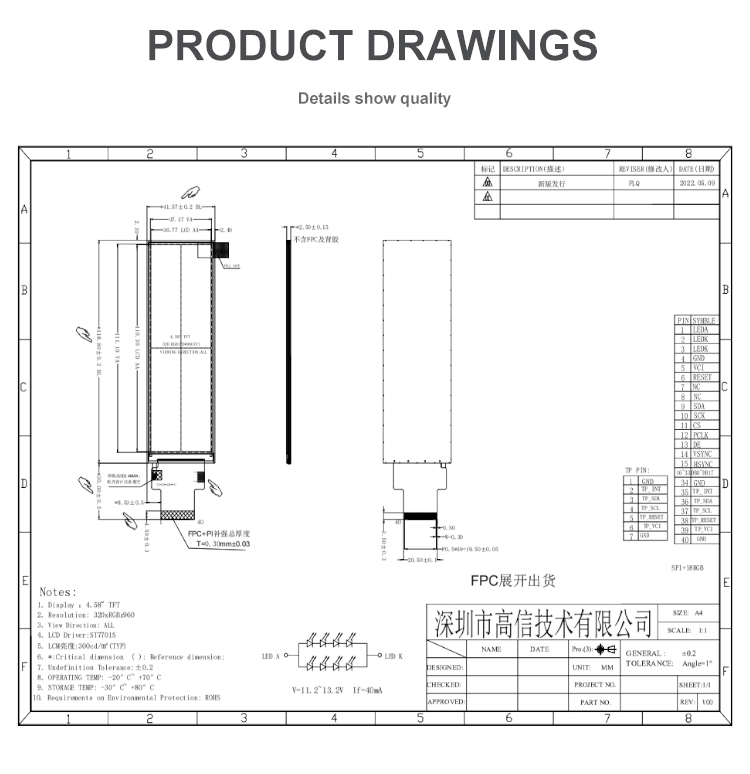

Drawing:



Note:

The lcd display pictures and text parameters in the above pages are only for illustration. Smart Company will provide accurate information as much as possible. The tft display pictures published on this site may be slightly different from the actual lcd display. Please refer to the actual tft display and the detailed specification of the TFT Lcd display screen. The specific model information shall prevail. For specific details, please contact the relevant business personnel. If there is any relevant modification to the above content, no prior notice will be given.

1. Basic specifications

The required TFT Lcd screen size, resolution, communication interface type between motherboard and TFT screen, display viewing angle, touch type selection, external dimensions, structural design, voltage, connection method of FPC cable, or specified Smart model.


2. Drawing Confirmation

According to the needs of communication and verification, as well as standard or customized materials, such as resistive touch or capacitive touch, wiring FPC or backlight, arrange the structural drawings of TFT Lcd display screens to customers for confirmation within 2-3 days.


3. Sample making

The sample delivery time for standardized tft display is 2-3 days. For customized lcd display, samples are made according to the confirmed drawings. Sample production takes time. The sample delivery cycle of Lcd screens is generally 7-12 days. The cycle time is 18-21 days.


4. Sample delivery

After the sample production is completed, it will be inspected according to the sample delivery process, and a series of structural and electrical performance tests, high and low temperature and thermal shock aging tests, vibration tests, salt spray tests, etc. will be arranged according to the quality control procedures, and tests will be carried out according to the requirements of different customers , Provide the actual test report of the tft display to ensure the reliable performance of the tft display.


5. Technical service

After receiving the customer's sample, we will provide the IC driver, the initialization code of the LCD screen, and the technical support will cooperate with the adjustment program to light up.
